QENDRA Touch

QENDRA TOUCH marks a new milestone in the evolution of Jofemar’s vending machines. This new model combines a robust and technological design with the exclusive extraction system adaptable to any type of product. Its integrated touchscreen transforms the shopping experience, making it more intuitive, modern and autonomous. In addition, it incorporates the brand’s latest innovation: a high-capacity central lift that guarantees fast, precise and respectful delivery, both with the product and with the end user.

+ INFORMATION FORM

ANTI-VANDALISM PLATE CLOSURE

OPTIMIZATION, CAPACITY AND VOLUME

J-SUITE

PERIMETER RGB LED LIGHT

PRODUCT DELIVERY DETECTION PHOTOCELLS

CONFIGURATION ACCORDING TO NEEDS

ELEVATOR

TOUCH SCREEN

FEATURES

32” interactive touch screen that allows intuitive navigation, personalization of the shopping experience.
New generation central lift, designed to pick up products at an ergonomic height, ideal for long items. It guarantees a safe, shock-free, and product-friendly delivery.
Advanced security system in the elevator and in the automatic collection door, which protects against theft and accidents.
Up to 8 trays with up to 10 adjustable channels, offering greater interior capacity and flexibility in configuration.
QENDRA TOUCHº with the possibility of programming the temperature and having an interior temperature of 2ºC to 25ºC. Optimal conditions according to the type of product.
Operation in environments with up to 65% relative humidity.
Detection of correct sale by means of photocells, which ensure the effective delivery of the product.
Programming of expiration date by channel or selection number, inhibiting the sale of expired products.
Change of channels and partitions without tools, facilitating adaptation to new products.
Multi-sales system, capable of delivering several products in a single operation.
FIFO (First In First Out) system, which guarantees continuous stock rotation.

DESIGN

With a matte black finish, 32” touchscreen and central collection drawer, the QENDRA TOUCH stands out for its modern and functional aesthetics. Its configurable RGB perimeter LED lighting allows the color to be adapted to the environment, reinforcing its presence and creating an immersive visual experience.

Elegant and robust design, with matte black finishes and the option of graphic customization with corporate image.

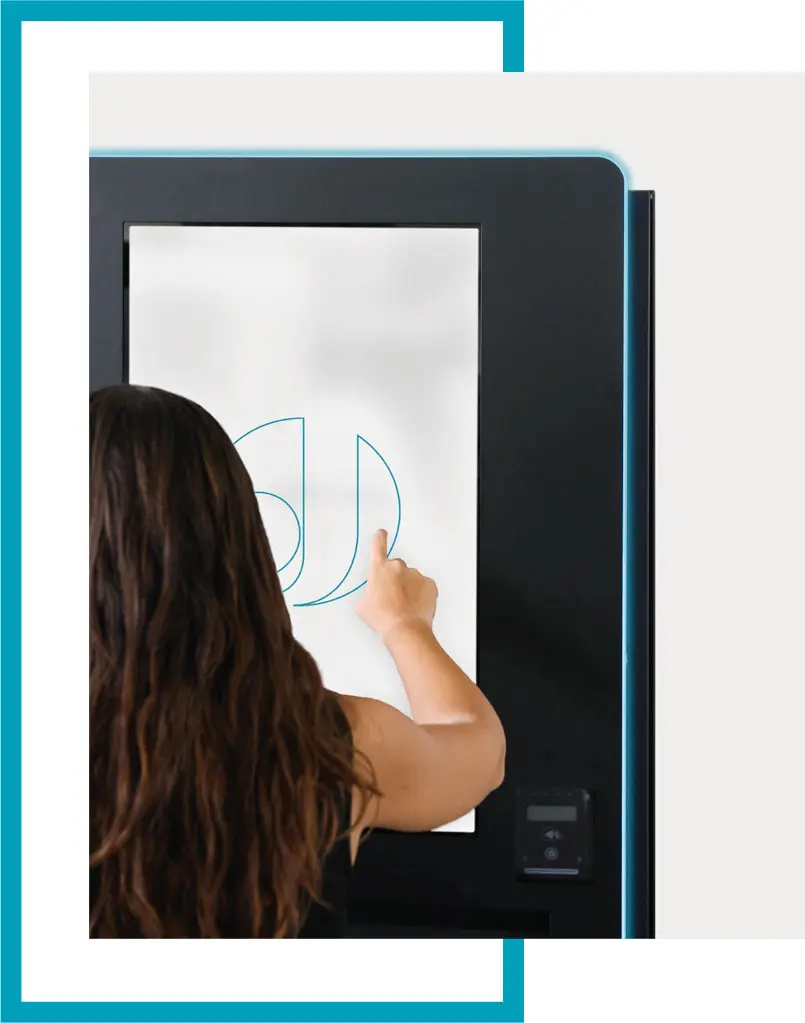

32” touchscreen integrated into the front, which provides modernity and improves user interaction.
Configurable RGB perimeter LED lighting, which allows the color to be adapted to the environment and reinforces the visual presence of the machine.
Central collection drawer with automatic opening and closing system, which improves the shopping experience and facilitates access to the product.
Product collection area dimensions of 286×558 mm.
Modular structure protected against corrosion and rust, designed for a long service life in any environment.

OPTIONS

Option to have a cooling group on our QENDRA TOUCHº.
Dispensing ramp for fragile products.
Assembly of different types of locks according to the customer’s needs.
Internal heater kit capable of keeping the inside of the machine 25ºC above ambient temperature, up to a maximum of 25ºC. It prevents accidental freezing of products due to external environmental causes and tempers products that require it as long as they do not saturate the interior with moisture.
Version with SBC and application for Jofemar screens or version with PC and application customized by the customer.
Possibility of equipping bank card holders or other peripherals using the EVA egg available on the front.

PROGRAMMING

Possibility of programming the interior temperature of the machine between 2ºC and 25ºC.
Consultation of all accounting information and machine status in a timely manner remote from J-Suite.
Make product changes with images and prices remotely from J-Suite.
Collection and sending of machine condition data to the control JSD device in order to inhibit the sale of spoiled product.
Control up to 3 satellite machines or 2 satellite machines + 4 Lockers.

TELEMETRY

Our Jofemar electronic system J-LINK offers a wide range of functionalities to all our machines. One of them is the ability to use J-SUITE, our comprehensive and unified solution for machine management that allows you full control of the machine from anywhere in the world.

ADVANTAGES

Compatibility with all Jofemar machines. You can use J-SUITE with all our products.
Total stock control.
Sending of technical and administrative alerts.
Remote control of the machines from your computer, tablet, or mobile phone.
Compatible with other payment systems.
Option to have a closed-loop card reader.
Compatible with non-Jofemar machines through standard protocols.
Maximum data storage security.
Automatic daily data backups.
Full availability at any time.
Access to sales statistics.
